Lapped Joint Flanges Supplier

Flat Faced Lap Joint Flanges, LJFF Flanges, Raised Face Lapped Joint Flanges, ASME B16.47 Series A Lapped Joint Flange, ANSI B16.5 Lapped Joint Flange, ASME B16.5 Lapped Joint Flanges, LJ Flanges, Lapped Joint Pipe Flange, LJRF Flange Manufacturer In Mumbai, India.

At Nextgen Steel & Alloys, we produce high-grade flanges using superior  material grade in varying dimensions, patterns, dimensions, models, and agendas. Also, we strive to provide these fittings in customized specifications as mentioned by our regular clients. In addition, we are providing our flange products by performing various tests before packing them and shipment. We purchase different grades of superior and pure quality raw materials, such as the finest quality alloy. The selected grades of the material consist of elements like nickel, chromium, carbon, and molybdenum in defined proportion. Additionally, components such as used as alloying elements give outstanding toughness to these flanges. At the same time, these elements also give strength to work in a highly corrosive environment.

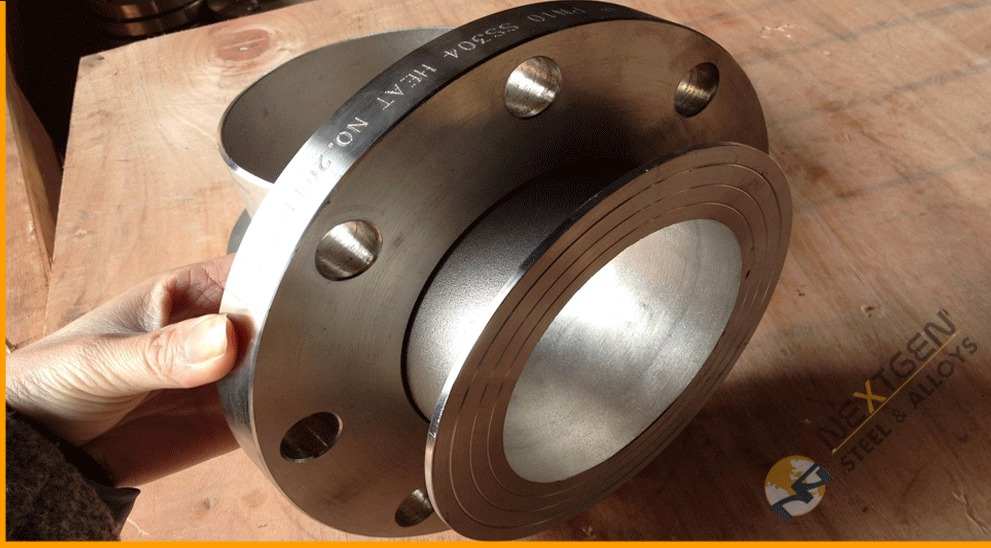

Lapped Joint Flanges

Nickel Alloy Lapped Joint Flange, Class 600 Lapped Joint Flanges Exporter, Stainless Steel Lapped Joint Flanges, Alloy Steel Lapped Joint Flange, Duplex Steel Lapped Joint Flange, Carbon Steel Lapped Joint Flange, Class 150 Lapped Joint Flanges, Class 300 Lapped Joint Flanges, Lapped Joint Flanges Supplier In India.

Lapped joint flanges are highly beneficial in carbon or low alloy steel piping systems. Using these types of flanges to the piping  system requires a lap-joint stub end. Piping systems where frequent dismantling is required for inspection or routine maintenance can use lapped-joint flange and stub end assembly. These Flanges are also useful in the erection of big diameter or tough to change piping configurations because of its quick bolt hole arrangement. Specific methods help achieve these flanges, like when the pipe material is exotic, and the lap is formed by shaping the pipe material after the loose flange has been fitted. Also, if the piping material is readily weldable, the lap end can be butt-welded to the pipe.

Our Lapped joint flanges are capable of undergoing through process of welding and fabrication. Therefore, these products serve well to critical and typical applications such as industries. On the other hand, our flanges have become popular in instrumental tubing and pulp bleaching units. The material alloy is of excellent quality, gives a smooth surface, and makes finished products suitable for several industrial installations.

Standard Specifications for Lapped Joint Flanges

Lapped Joint Flanges Dimensions

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Lapped Joint Flanges Standard

ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Lapped Joint Flanges Size

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Lapped Joint Flanges Class / Pressure

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Pressure Calculation in DIN

6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64

Lapped Joint Flange Face Type

Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Lapped Joint Flanges Materials and Grade :

Stainless Steel Lapped Joint Flanges :
ASTM A182, F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L, SMO 254

Duplex & Super Duplex Steel Lapped Joint  Flanges :
ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61 / Duplex 2205 – UNS S31803, UNS S32205 / Super Duplex 2507 – UNS S32750, UNS S32760

Carbon Steel Lapped Joint Flanges :
ASTM/ ASME A105, ASTM/ ASME A350 LF2, ASTM A694 & ASME SA694 F42 / F46 / F52 / F56 / F60 / F65 / F70

Alloy Steel Lapped Joint Flanges :
ASTM / ASME A182 F5 / F9 / F11 / F12 / F22 / F91

Inconel Lapped Joint Flanges : ASTM B564, Inconel 600 – UNS No. N06600, Inconel 601 – UNS No. N06601, Inconel 625 -UNS No. N06625, Inconel 715, Inconel 718 – UNS No. N07718, Incoloy 800 / 800H /800HT – (UNS No. N08800 / N08810 / N08811), Incoloy 825 – UNS No. N08825, Incoloy 925 – UNS No. N09925

Hastelloy Lapped Joint Flanges :
ASTM B/SB564, Hastelloy B2 – UNS No. N10665, Hastelloy B3 – UNS No. N010675, Hastelloy C4 – UNS No. N06455, Hastelloy C22 – UNS No. N06022, Hastelloy C276 – UNS No. N10276, Hastelloy C2000 – UNS No. N06200, Hastelloy X – UNS No. N06002

Nickel Lapped Joint Flanges : Nickel 200 – UNS No. N02200 , Nickel 201 – UNS No. N02201

Monel Lapped Joint Flanges :
ASME SB 564, Monel 400 – UNS No. N04400, Monel K500 – UNS No. N05500

Titanium Lapped Joint Flanges :
ASTM B381 / ASME SB381, Grade 2 – UNS No. R50400, Grade 5 – UNS No. R56400

Alloy 20 Lapped Joint Flanges :
ASTM B462 / ASME SB462 – UNS No. N08020

Contact us to get quote for your requirement.

Our worldwide presence ensures the timeliness, cost efficiency and compliance adherence required to ensure your production timelines are met.

Dimensions of Lapped Joint pipe flange

Class 150 Lap Joint Flange Dimensions

Normal Pipe Size in Inch Normal Pipe Size in mm Outer Diameter Thickness Of Flange Thickness Of Lapped Lapped Inside Daimeter PCD Lapped Thickness Lapped Radius Number of Bolts Bolt Size UNC Machine Bolt Length Length Of RF Stud Size Of Hole ISO Stud Sizes Weight In Kilogram
    A B C D E G
1/2 15 90 30 16 22.9 60.3 11.2 3 4 1/2 50 55 5/8 M14 0.8
3/4 20 100 38 16 28.2 69.9 12.7 3 4 1/2 50 65 5/8 M14 0.9
1 25 110 49 17 34.9 79.4 14.3 3 4 1/2 55 65 5/8 M14 0.9
1 1/4 32 115 59 21 43.7 88.9 15.9 5 4 1/2 55 70 5/8 M14 1.4
1 1/2 40 125 65 22 50 98.4 17.5 6 4 1/2 65 70 5/8 M14 1.4
2 50 150 78 25 62.5 120.7 19.1 8 4 5/8 70 85 3/4 M16 2.3
2 1/2 65 180 90 29 75.4 139.7 22.3 8 4 5/8 75 90 3/4 M16 3.2
3 80 190 108 30 91.4 152.4 23.9 10 4 5/8 75 90 3/4 M16 3.7
3 1/2 90 215 122 32 104.1 177.8 23.9 11 8 5/8 75 90 3/4 M16 5
4 100 230 135 33 116.8 190.5 23.9 11 8 5/8 75 90 3/4 M16 5.9
5 125 255 164 36 144.4 215.9 23.9 11 8 3/4 85 95 7/8 M20 6.8
6 150 280 192 40 171.4 241.3 25.4 13 8 3/4 85 100 7/8 M20 8.6
8 200 345 246 44 222.2 298.5 28.6 13 8 3/4 90 110 7/8 M20 13.7
10 250 405 305 49 277.4 362 30.2 13 12 7/8 100 115 1 M24 19.5
12 300 485 365 56 328.2 431.8 31.8 13 12 7/8 100 120 1 M24 29
14 350 535 400 79 360.2 476.3 35 13 12 1 115 135 1 1/8 M27 41
16 400 595 457 87 411.2 539.8 36.6 13 16 1 115 135 1 1/8 M27 54
18 450 635 505 97 462.3 577.9 39.7 13 16 1 1/8 125 145 1 1/4 M30 59
20 500 700 559 103 514.4 635 42.9 13 20 1 1/8 140 160 1 1/4 M30 75
24 600 815 663 111 616 749.3 47.9 13 20 1 1/4 150 170 1 3/8 M33 100

Class 300 Lap Joint Flange Dimensions

Normal Pipe Size in Inch Normal Pipe Size in mm Outer Diameter Thickness Of Flange Thickness Of Lapped Lapped Inside Daimeter PCD Lapped Thickness Lapped Radius Number of Bolts Bolt Size UNC Machine Bolt Length Length Of RF Stud Size Of Hole ISO Stud Sizes Weight In Kilogram
    A B C D E G
1/2 15 95 38 22 22.9 66.7 14.3 3 4 1/2 55 65 5/8 M14 1.2
3/4 20 115 48 25 28.2 82.6 15.9 3 4 5/8 65 75 3/4 M16 1.4
1 25 125 54 27 34.9 88.9 17.5 3 4 5/8 65 75 3/4 M16 1.4
1 1/4 32 135 64 27 43.7 98.4 19.1 5 4 5/8 70 85 3/4 M16 1.8
1 1/2 40 155 70 30 50 114.3 20.7 6 4 3/4 75 90 7/8 M20 2.7
2 50 165 84 33 62.5 127 22.3 8 8 5/8 75 90 3/4 M16 3.2
2 1/2 65 190 100 38 75.4 149.2 25.4 8 8 3/4 85 100 7/8 M20 4.6
3 80 210 117 43 91.4 168.3 28.6 10 8 3/4 90 110 7/8 M20 5.9
3 1/2 90 230 133 44 104.1 184.2 30.2 11 8 3/4 95 110 7/8 M20 7.7
4 100 255 146 48 116.8 200 31.8 11 8 3/4 95 115 7/8 M20 10
5 125 280 178 51 144.4 235 35 11 8 3/4 110 120 7/8 M20 12.7
6 150 320 206 52 171.4 269.9 36.6 13 12 3/4 110 120 7/8 M20 17.7
8 200 380 260 62 222.2 330.2 41.3 13 12 7/8 120 140 1 M24 26
10 250 445 321 95 277.4 387.4 47.7 13 16 1 140 160 1 1/8 M27 36
12 300 520 375 102 328.2 450.8 50.8 13 16 1 1/8 145 170 1 1/4 M30 52
14 350 585 425 111 360.2 514.4 54 13 20 1 1/8 160 180 1 1/4 M30 75
16 400 650 483 121 411.2 571.5 57.2 13 20 1 1/4 165 190 1 3/8 M33 86
18 450 710 533 130 462.3 628.6 60.4 13 24 1 1/4 170 195 1 3/8 M33 113
20 500 775 587 140 514.4 685.8 63.5 13 24 1 1/4 185 205 1 3/8 M33 143
24 600 915 702 153 616 812.8 69.9 13 24 1 1/2 205 230 1 5/8 M39 216

Class 400 Lap Joint Flange Dimensions

Normal Pipe Size in Inch Normal Pipe Size in mm Outer Diameter Thickness Of Flange Thickness Of Lapped Lapped Inside Daimeter PCD Lapped Thickness Lapped Radius Number of Bolts Bolt Size UNC Length Of RF Stud Size Of Hole ISO Stud Sizes Weight In Kilogram
    A B C D E G
1/2 15 95 38 22 22.9 66.7 14.3 3 4 1/2 75 5/8 M14 1.3
3/4 20 115 48 25 28.2 82.6 15.9 3 4 5/8 90 3/4 M16 1.5
1 25 125 54 27 34.9 88.9 17.5 3 4 5/8 90 3/4 M16 1.8
1 1/4 32 135 64 29 43.7 98.4 20.7 5 4 5/8 95 3/4 M16 2.3
1 1/2 40 155 70 32 50 114.3 22.3 6 4 3/4 110 7/8 M20 3.2
2 50 165 84 37 62.5 127 25.4 8 8 5/8 110 3/4 M16 4.1
2 1/2 65 190 100 41 75.4 149.2 28.6 8 8 3/4 120 7/8 M20 5.9
3 80 210 117 46 91.4 168.3 31.8 10 8 3/4 125 7/8 M20 7.3
3 1/2 90 230 133 49 104.1 184.2 35 10 8 7/8 140 1 M24 9.6
4 100 255 146 51 116.8 200 35 11 8 7/8 140 1 M24 11.8
5 125 280 178 54 144.5 235 38.1 11 8 7/8 145 1 M24 14.1
6 150 320 206 57 171.4 269.9 41.3 13 12 7/8 150 1 M24 20
8 200 380 260 68 222.2 330 47.7 13 12 1 170 1 1/8 M27 31
10 250 445 321 102 277.4 387.4 54 13 16 1 1/8 190 1 1/4 M30 42
12 300 520 375 108 328.2 450.8 57.2 13 16 1 1/4 205 1 3/8 M33 59
14 350 585 425 117 360.2 514.4 60.4 13 20 1 1/4 210 1 3/8 M33 82
16 400 650 483 127 411.2 571.5 63.5 13 20 1 3/8 220 1 1/2 M36 107
18 450 710 533 137 462.3 628.6 66.7 13 24 1 3/8 230 1 1/2 M36 130
20 500 775 587 146 514.4 685.8 69.9 13 24 1 1/2 240 1 3/4 M39 157
24 600 915 702 159 616 812.8 76.2 13 24 1 3/4 265 1 7/8 M45 232

Class 600 Lap Joint Flange Dimensions

Normal Pipe Size in Inch Normal Pipe Size in mm Outer Diameter Thickness Of Flange Thickness Of Lapped Lapped Inside Daimeter PCD Lapped Thickness Lapped Radius Number of Bolts Bolt Size UNC Length Of RF Stud Size Of Hole ISO Stud Sizes Weight In Kilogram
    A B C D E G
1/2 15 95 38 22 22.9 66.7 14.3 3 4 1/2 75 5/8 M14 1.3
3/4 20 115 48 25 28.2 82.6 15.9 3 4 5/8 90 3/4 M16 1.4
1 25 125 54 27 34.9 88.9 17.5 3 4 5/8 90 3/4 M16 1.8
1 1/4 32 135 64 29 43.7 98.4 20.7 5 4 5/8 95 3/4 M16 2.3
1 1/2 40 155 70 32 50 114.3 22.3 6 4 3/4 110 7/8 M20 3.2
2 50 165 84 37 62.5 127 25.4 8 8 5/8 110 3/4 M16 4.1
2 1/2 65 190 100 41 75.4 149.2 28.6 8 8 3/4 120 7/8 M20 5.9
3 80 210 117 46 91.4 168.3 31.8 10 8 3/4 125 7/8 M20 7.3
3 1/2 90 230 133 49 104.1 184.2 35 11 8 7/8 140 1 M24 9.6
4 100 275 152 54 116.8 215.9 38.1 11 8 7/8 145 1 M24 16.8
5 125 330 189 60 144.4 266.7 44.5 11 8 1 165 1 1/8 M27 29
6 150 355 222 67 171.4 292.1 47.7 13 12 1 170 1 1/8 M27 36
8 200 420 273 76 222.2 349.2 55.6 13 12 1 1/8 190 1 1/4 M30 52
10 250 510 343 111 277.4 431.8 63.5 13 16 1 1/4 215 1 3/8 M33 77
12 300 560 400 117 328.2 489 66.7 13 20 1 1/4 220 1 3/8 M33 91
14 350 605 432 127 360.2 527 69.9 13 20 1 3/8 235 1 1/2 M36 105
16 400 685 495 140 411.2 603.2 76.2 13 20 1 1/2 255 1 5/8 M39 150
18 450 745 546 152 462.3 654 82.6 13 20 1 5/8 275 1 3/4 M42 182
20 500 815 610 165 514.4 723.9 88.9 13 24 1 5/8 285 1 3/4 M42 232
24 600 940 718 184 616 838.2 101.6 13 24 1 7/8 330 2 M48 332

Class 900 Lap Joint Flange Dimensions

Normal Pipe Size in Inch Normal Pipe Size in mm Outer Diameter Thickness Of Flange Thickness Of Lapped Lapped Inside Daimeter PCD Lapped Thickness Lapped Radius Number of Bolts Bolt Size UNC Length Of RF Stud Size Of Hole ISO Stud Sizes Weight In Kilogram
    A B C D E G
1/2 15 120 38 32 22.9 82.6 22.3 3 4 3/4 110 7/8 M20 1.8
3/4 20 130 44 35 28.2 88.9 25.4 3 4 3/4 115 7/8 M20 2.3
1 25 150 52 41 34.9 101.6 28.6 3 4 7/8 125 1 M24 3.6
1 1/4 32 160 64 41 43.7 111.1 28.6 5 4 7/8 125 1 M24 4.1
1 1/2 40 180 70 44 50 123.8 31.8 6 4 1 140 1 1/8 M27 5.5
2 50 215 105 57 62.5 165.1 38.1 8 8 7/8 145 1 M24 11.5
2 1/2 65 245 124 64 75.4 190.5 41.3 8 8 1 160 1 1/8 M27 16.5
3 80 240 127 54 91.4 190.5 38.1 10 8 7/8 145 1 M24 12
4 100 290 159 70 116.8 235 44.5 11 8 1 1/8 170 1 1/4 M30 24
5 125 350 190 79 144.4 279.4 50.8 11 8 1 1/4 190 1 3/8 M33 38
6 150 380 235 86 171.4 317.5 55.6 13 12 1 1/8 190 1 1/4 M30 50
8 200 470 298 114 222.2 393.7 63.5 13 12 1 3/8 220 1 1/2 M36 78
10 250 545 368 127 277.4 469.9 69.9 13 16 1 3/8 235 1 1/2 M36 112
12 300 610 419 143 328.2 533.4 79.4 13 20 1 3/8 255 1 1/2 M36 148
14 350 640 451 156 360.2 558.8 85.8 13 20 1 1/2 275 1 5/8 M39 182
16 400 705 508 165 411.2 616 88.9 13 20 1 5/8 285 1 3/4 M42 193
18 450 785 565 190 462.3 685.8 101.6 13 20 1 7/8 325 2 M48 258
20 500 855 622 210 514.4 749.3 108 13 20 2 350 2 1/8 M52 317
24 600 1040 749 267 616 901.7 139.7 13 20 2 1/2 440 2 5/8 M64 608

Weight Chart of ASME B16.5 Lapped Joint Flanges

Nominal Pipe Sizes (NPS) Slip On (SORF) Threaded (NPT) Socket Weld (SWRF) Lap Joint (Loose) Blind (BLRF) Weld Neck (WRNR)
½ 1 1 2 1 2 2
¾ 2 2 2 2 2 2
1 2 2 2 2 2 3
3 3 3 3 3 3
3 3 3 3 4 4
2 5 5 5 5 5 6
8 8 8 8 7 10
3 9 9 9 9 9 11.5
11 12 11 11 13 12
4 13 13 13 13 17 16.5
5 15 15 15 15 20 21
6 19 19 19 19 27 26
8 30 30 30 30 47 42
10 43 43 43 43 70 54
12 64 64 64 64 123 88
14 90 90 90 105 140 114
16 106 98 98 140 180 140
18 130 130 130 160 220 165
20 165 165 165 195 285 197
22 185 185 185 245 355 225
24 220 220 220 275 430 268
