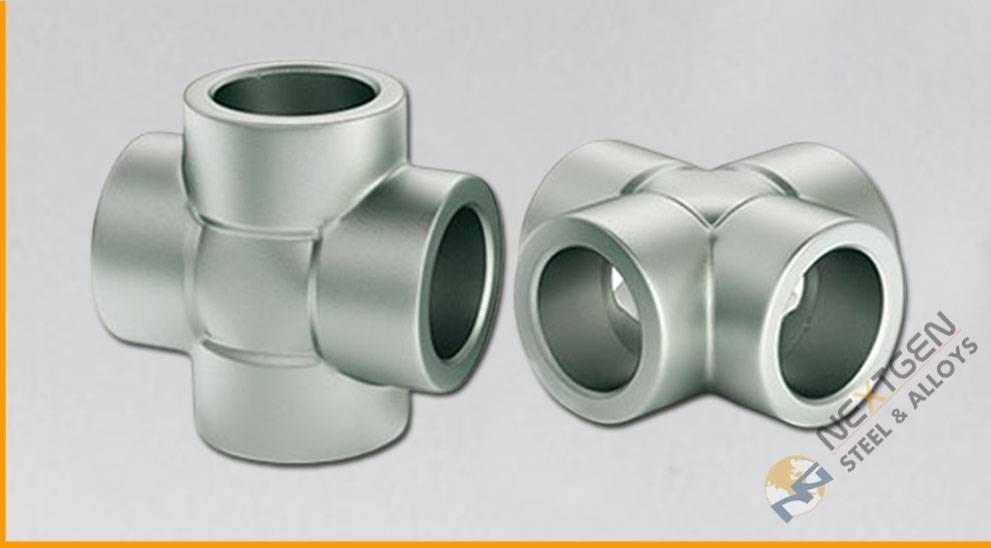

Socket Weld Cross Supplier
ANSI B16.11 SOCKET WELD CROSS, SOCKET WELD Equal CROSS, FORGED SOCKET WELD CROSS, SOCKET WELD PIPE Unequal CROSS, SW CROSS, ASME B16.11 SOCKET WELD PIPE CROSS, SOCKET WELD FORGED Equal CROSS, CROSS MANUFACTURER IN MUMBAI, INDIA.
Nextgen Steel & Alloys Company provides and manufactures only the best quality products. We are an expert manufacturer of pipe Cross. We use different materials and grades to develop this cross, for example, carbon steel, cupro nickel, etc. As per specifications given by clients, we develop these crosses. Specifications of these crosses are dimensions, outer diameter, types, wall thickness, and grade of materials.
The crosses are the pipe fittings. These pipe fittings help to connect pipes. Cross is a product that connects two or more outlets and provides uniform flow. It acts as a conveyor between two or more pipes in the piping industry. These crosses prevent loss or breakage, or any damage. These Crosses are also known as a 4-way pipe fitting. Cross tee usually generates high stress on the pipe as temperature changes because they are at the center of four connection points.
ASME B16.11 SOCKET WELD PIPE CROSS, STAINLESS STEEL FORGED CROSS, 3000LB SOCKET WELD FORGED Equal CROSS, DUPLEX STEEL FORGED SOCKET WELD PIPE CROSS, CARBON STEEL SOCKET WELD Unequal CROSS, 6000# SOCKET WELD Equal CROSS, BS3799 SOCKETWELD FORGED CROSS EXPORTER, ALLOY STEEL SOCKET WELD CROSS, NICKEL ALLOY SOCKET WELD PIPE CROSS, SOCKET WELD CROSS SUPPLIER IN INDIA.
These crosses have two types: Reducing Cross and Equal Cross. In reducing cross, four ends of pipes are not in same diameters and in equal cross the pipe ends are in same diameters. Reduce the crosses of pipes have a separate size opening and two openings of the same size. Reducing Cross shows high resistance to severe chemicals such as hydrophobic acids, sulfuric acids, Hydrochloric acids, and different organic and inorganic compounds. This cross has excellent structural stability regarding adverse applications. It has good performance in mildly corrosive environments, even in fluctuating conditions. It also offers good service in higher temperature applications without any deformation and elongation.
We can supply pipe cross in two types, namely, straight cross and reducing cross, in a complete range of shapes and dimensions. We are a leading supplier of Cross in various industries such as oil and gas, petrochemical, power generation, pharmaceuticals, paper manufacturing, natural gas industry, and chemical plants. Cross is used in many applications as a junction for intersecting pipes.
Standard Specifications for Cross
Dimensions
ASME B16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size
1/8” NB to 4” NB
Thickness
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Pressure Class
3000 LBS, 6000 LBS, 9000 LBS
Cross Materials and Grade:
Stainless Steel Cross :
ASTM A182, F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L, SMO 254
Duplex & Super Duplex Steel Cross :
ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61 / Duplex 2205 – UNS S31803, UNS S32205 / Super Duplex 2507 – UNS S32750, UNS S32760
Carbon Steel Cross :
ASTM/ ASME A105, ASTM/ ASME A350 LF2, ASTM A694 & ASME SA694 F42 / F46 / F52 / F56 / F60 / F65 / F70
Alloy Steel Cross :
ASTM / ASME A182 F5 / F9 / F11 / F12 / F22 / F91, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Inconel Cross : ASTM B564, Inconel 600 – UNS No. N06600, Inconel 601 – UNS No. N06601, Inconel 625 -UNS No. N06625, Inconel 715, Inconel 718 – UNS No. N07718, Incoloy 800 / 800H /800HT – (UNS No. N08800 / N08810 / N08811), Incoloy 825 – UNS No. N08825, Incoloy 925 – UNS No. N09925
Hastelloy Cross :
ASTM B/SB564, Hastelloy B2 – UNS No. N10665, Hastelloy B3 – UNS No. N010675, Hastelloy C4 – UNS No. N06455, Hastelloy C22 – UNS No. N06022, Hastelloy C276 – UNS No. N10276, Hastelloy C2000 – UNS No. N06200, Hastelloy X – UNS No. N06002
Nickel Cross : Nickel 200 – UNS No. N02200 , Nickel 201 – UNS No. N02201
Monel Cross :
ASME SB 564, Monel 400 – UNS No. N04400, Monel K500 – UNS No. N05500
Titanium Cross :
ASTM B381 / ASME SB381, Grade 2 – UNS No. R50400, Grade 5 – UNS No. R56400
Alloy 20 Cross :
ASTM B462 / ASME SB462 – UNS No. N08020
Contact us to get quote for your requirement.
ASME B16.11 Cross Dimensions
Class 3000 Socket Weld Cross Dimensions
| NPS | Socket Bore | Depth Socket | Bore diameter | Socket wall thickness | Center to bottom of socket |
|---|---|---|---|---|---|
| B | J | D | C | A | |
| 1/2 | 21.95 21.70 | 10 | 16.6 15 | 4.65 4.10 | 15.5 |
| 3/4 | 27.30 27.05 | 13 | 21.7 20.2 | 4.90 4.25 | 19.5 |
| 1 | 34.05 33.80 | 13 | 27.4 25.9 | 5.70 5.00 | 22 |
| 1¼ | 42.80 42.55 | 13 | 35.8 34.3 | 6.05 5.30 | 27 |
| 1½ | 48.90 48.65 | 13 | 41.7 40.1 | 6.35 5.55 | 32 |
| 2 | 61.35 61.10 | 16 | 53.5 51.7 | 6.95 6.05 | 38 |
| 2½ | 74.20 73.80 | 16 | 64.2 61.2 | 8.75 7.65 | 41.5 |
| 3 | 90.15 89.80 | 16 | 79.5 46.4 | 9.50 8.30 | 57.5 |
| 4 | 115.80 115.45 | 19 | 103.8 100.7 | 10.70 9.35 | 66.5 |
Class 6000 Socket Weld Cross Dimensions
| NPS | Socket Bore | Depth Socket | Bore diameter | Socket wall thickness | Center to bottom of socket |
|---|---|---|---|---|---|
| B | J | D | C | A | |
| 1/2 | 21.95 21.70 | 10 | 12.5 11 | 5.95 5.20 | 19.5 |
| 3/4 | 27.30 27.05 | 13 | 16.3 14.8 | 6.95 6.05 | 22.5 |
| 1 | 34.05 33.80 | 13 | 21.5 19.9 | 7.90 6.95 | 27 |
| 1¼ | 42.80 42.55 | 13 | 30.2 28.7 | 7.90 6.95 | 32 |
| 1½ | 48.90 48.65 | 13 | 34.7 33.2 | 8.90 7.80 | 38 |
| 2 | 61.35 61.10 | 16 | 43.6 42.1 | 10.90 9.50 | 41 |
