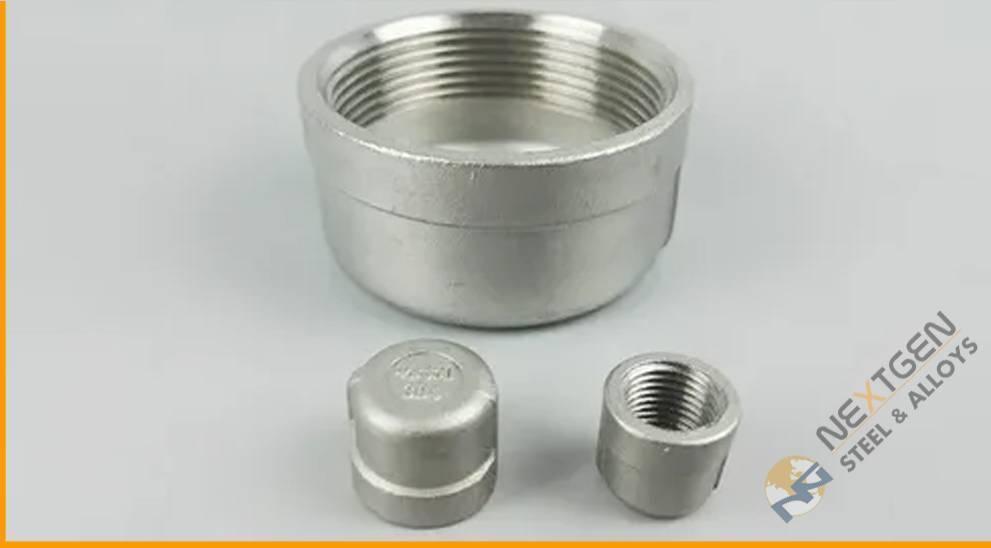

NEXTGEN STEEL & ALLOYS manufacture the caps in different forms as per the need of industrial applications. These caps are available in various specifications, and it has excellent features that are useful for applications. Threaded Caps work reliably with all applications. These Caps are manufactured in different sizes and dimensions, they contain the best material composition and grades, and that’s why they have great demands in industries. Threaded Caps are suitable for serving small diameter pipes below 4 inches. The main characteristic of these caps they have high strength and good mechanical properties, including hardness. They are highly flexible, similar to silicone and come with lower temperature resistance.
Threaded Caps has decreased sides for providing a tight fit. Most of the caps can be utilized as a plug. They are multi-functional and go well with male and female threads, straight tubes and bars, and straight male threads. Threaded Caps are the type of threaded fitting which is usually liquid or gas-tight. We manufactured these caps that help withstand multiple cycles of tightening that lead to the loosening of the threads during the drilling process. It is the major workings of Threaded Caps.The properties offered by these Threaded Caps are excellent. Threaded Caps are manufactured with the type of steel that can make thinner caps. The reason for this as it has a unique combination that offers the properties such as toughness, hardness, and strength.
These Threaded Caps are most commonly used in the industries such as the oil and gas industry, petrochemical industries, energy projects, hydraulics, pneumatic industries. They work best in all surroundings, and they work flexibly and reliably with all sorts of applications as they provide a great range of characteristics. Threaded Caps’ mechanical properties help them work in all types of platforms without any corrosion difficulties.
Dimensions
ASME B16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size
1/8” NB to 4” NB
Thickness
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Pressure Class
3000 LBS, 6000 LBS, 9000 LBS
Stainless Steel Threaded Cap :
ASTM A182, F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L, SMO 254
Duplex & Super Duplex Steel Threaded Cap :
ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61 / Duplex 2205 – UNS S31803, UNS S32205 / Super Duplex 2507 – UNS S32750, UNS S32760
Carbon Steel Threaded Cap :
ASTM/ ASME A105, ASTM/ ASME A350 LF2, ASTM A694 & ASME SA694 F42 / F46 / F52 / F56 / F60 / F65 / F70
Alloy Steel Threaded Cap :
ASTM / ASME A182 F5 / F9 / F11 / F12 / F22 / F91, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Inconel Threaded Cap : ASTM B564, Inconel 600 – UNS No. N06600, Inconel 601 – UNS No. N06601, Inconel 625 -UNS No. N06625, Inconel 715, Inconel 718 – UNS No. N07718, Incoloy 800 / 800H /800HT – (UNS No. N08800 / N08810 / N08811), Incoloy 825 – UNS No. N08825, Incoloy 925 – UNS No. N09925
Hastelloy Threaded Cap :
ASTM B/SB564, Hastelloy B2 – UNS No. N10665, Hastelloy B3 – UNS No. N010675, Hastelloy C4 – UNS No. N06455, Hastelloy C22 – UNS No. N06022, Hastelloy C276 – UNS No. N10276, Hastelloy C2000 – UNS No. N06200, Hastelloy X – UNS No. N06002
Nickel Threaded Cap : Nickel 200 – UNS No. N02200 , Nickel 201 – UNS No. N02201
Monel Threaded Cap :
ASME SB 564, Monel 400 – UNS No. N04400, Monel K500 – UNS No. N05500
Titanium Threaded Cap :
ASTM B381 / ASME SB381, Grade 2 – UNS No. R50400, Grade 5 – UNS No. R56400
Alloy 20 Threaded Cap :
ASTM B462 / ASME SB462 – UNS No. N08020
Class 3000 Threaded Cap Dimensions
NPS | End to End | Outside Diameter | Minimum End Wall Thickness | Minimum Length of Thread | |
A | D | G | B | J | |
1/2 | 32 | 28 | 6.4 | 10.9 | 13.6 |
3/4 | 37 | 35. | 6.4 | 12.7 | 13.9 |
1 | 41 | 44 | 9.7 | 14.7 | 17.3 |
1¼ | 44 | 57 | 9.7 | 17 | 18 |
1½ | 44 | 64 | 11.2 | 17.8 | 18.4 |
2 | 48 | 76 | 12.7 | 19 | 19.2 |
2½ | 60 | 92 | 15.7 | 23.6 | 28.9 |
3 | 65 | 108 | 19 | 25.9 | 30.5 |
4 | 68 | 140 | 22.4 | 27.7 | 33 |
Class 6000 Threaded Cap Dimensions
NPS | End to End | Outside Diameter | Minimum End Wall Thickness | Minimum Length of Thread | |
---|---|---|---|---|---|
A | D | G | B | J | |
1/2 | 33 | 38 | 7.9 | 10.9 | 13.6 |
3/4 | 38 | 44 | 7.9 | 12.7 | 13.9 |
1 | 43 | 57 | 11.2 | 14.7 | 17.3 |
1¼ | 46 | 64 | 11.2 | 17 | 18 |
1½ | 48 | 76 | 12.7 | 17.8 | 18.4 |
2 | 51 | 92 | 15.7 | 19 | 19.2 |
2½ | 64 | 108 | 19 | 23.6 | 28.9 |
3 | 68 | 127 | 22.4 | 25.9 | 30.5 |
4 | 75 | 159 | 28.4 | 27.7 | 33 |
