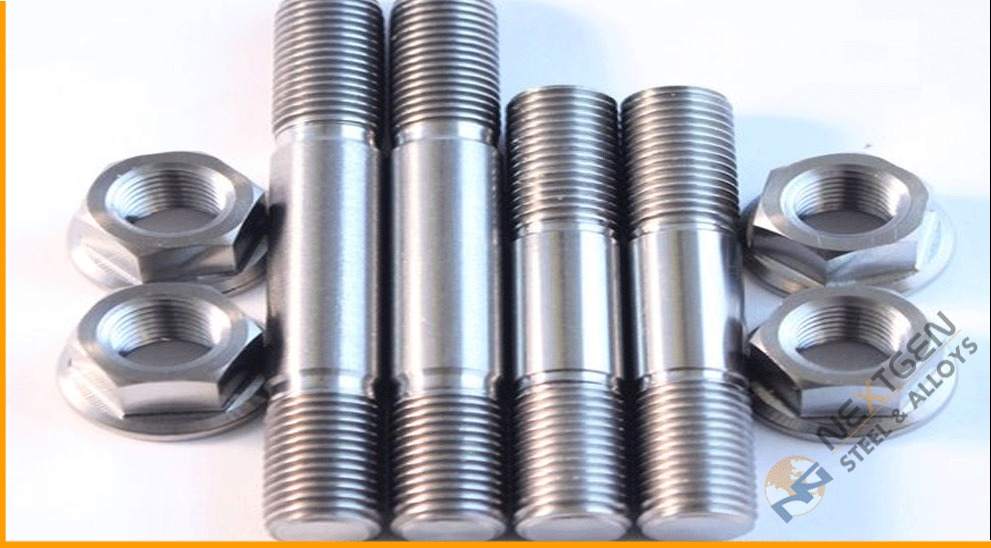

Nextgen Steel & Alloys accepted each and every demand of the market and flourished as the successful manufacturer of Incoloy 800H Stud Bolts. We offer different specifications of stud bolts. The raw material is high quality for the production of Stud Bolts. At higher temperatures, Incoloy 800 stud bolts offers resistance to sulfidation, carburization and oxidation, along with rupture and creep strength. Incoloy 800 stud Bolt is a solid-solution, austenitic alloy. Appearing in the microstructure of Incoloy 800, are chromium carbides, titanium carbides and titanium nitrides. Incoloy 800H stud Bolt is easy to machine by the use of standard methods. Incoloy 800 Hex Head Bolts are in big demand in many industries, as they are resistant to chloride ion stress corrosion cracking. Fasteners made from Incoloy 800 are also in big demand in petrochemical and chemical processing. Even when it is exposed to very high temperatures, Incoloy 800H Fasteners keeps a very stable structure, making it extremely functional and much sought after, in many industries. Incoloy 800HT offers superb oxidation resistance. Even in a very acidic environment, Incoloy 800 offers resistant to corrosion. In cracked ammonia, Incoloy 800 shows quite a good resistance to nitridation.
Incoloy 800 Stud bolts are heavy in duty. These materials are superbly adjusted and composed. The components of these studs are of a high standard. Incoloy 800 HT Stud bolts are extensively suited for aqueous applications as they do not get eroded and abraded by any marine elements. Such products are very useful while manufacturing marine hardware products like blades, propellers, etc. Incoloy 800 H stud bolts are carved to work earnestly at high temperatures too. The harsh media conditions do not turn them functionless. Their strong elements make them have no accumulation of precipitate layers and make them more productive and useable. The welding and forging processes are done at high temperatures done after which annealing is done to Incoloy 800 HT stud bolts, making them very durable and hard. The consistency of metals used and excellent combination of processing strategy makes them perfect. The prices of Incoloy 800 H and Incoloy 800 HT stud bolts are incredibly less as compared to the grade that has been used.
Incoloy 800/800H/800HT Stud Bolt Specifications
ASTM B408 / ASME SB408
Incoloy 800/800H/800HT Stud Bolt Dimensions
ASME B18.3, B18.2.1
Incoloy 800/800H/800HT Stud Bolt Size Range
M02 to M33, Custom Sizes
Incoloy 800/800H/800HT Stud Bolt Length
3mm to 200mm
Incoloy 800/800H/800HT Stud Bolt UTS - Unified Thread Standard
UNC, UNF, ACME, NPT, UNS, UNEF, NPTF
Incoloy 800/800H/800HT Stud Bolt Test Certificates
EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GHOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
Incoloy 800HT | 1.4959 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Grade | C | MN | SI | S | Cu | Fe | Ni | Cr | Al | Ti |
800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Alloy 2.4858 Stud Bolts Manufacturer in India
JIS NCF 800 Industrial Stud
Inconel Alloy 800 Tap End Stud Bolts in India
Incoloy Alloy 800HT Tie Rods Stockholder
Inconel Alloy 800H Threaded Rods Exporters
B408 Incoloy 800 Studs
800 Incoloy Single Ended Threaded Stud Exporter
Incoloy 800HT Half Thread Stud Bolts
Inconel Alloy 800H Partial Threaded Stud Bolt
Incoloy Alloy Grade 800 Single End Stud Bolt
Incoloy Alloy 800HT Full Threaded Stud Bolt
Inconel 800H Stud Bolts Stockists
Nickel 800H Stud Bolts Manufacturer in India
800HT Incoloy Alloy Stud Bolts
800 Inconel Continuous Thread Stud Bolt
ASTM B408 Inconel 800 Stud Bolts at Best Price
JIS NCF 800HT Stud Bolts Supplier in India
Nickel Alloy 800H Heavy Stud Bolt
Inconel Alloy 800HT Reduced Shank Stud Bolt
Incoloy 800H Stud Bolts Stockist In Mumbai
Alloy 800 Metric Thread Stud Bolt
UNS N08800 Stud Bolts Supplier
Incoloy Alloy 800 Double End Threaded Studs
2.4858 Inconel Alloy Stud Bolt
